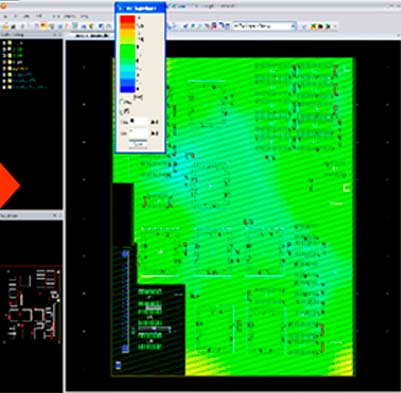

PIStream can support PCB design controlling power integrity (PI) by reducing input impedance and transfer impedance.


PI problems occur when IR drop (voltage drop) relevant to IC power consumption in the Power Distribution Network (PDN) occur. The following three key features support your PI design.

  • Input Impedance Analysis
  • Transfer Impedance Analysis
  • DC Analysis
